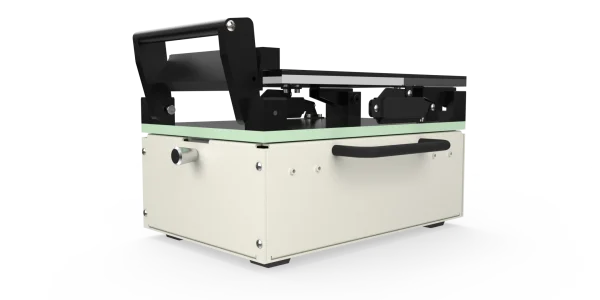

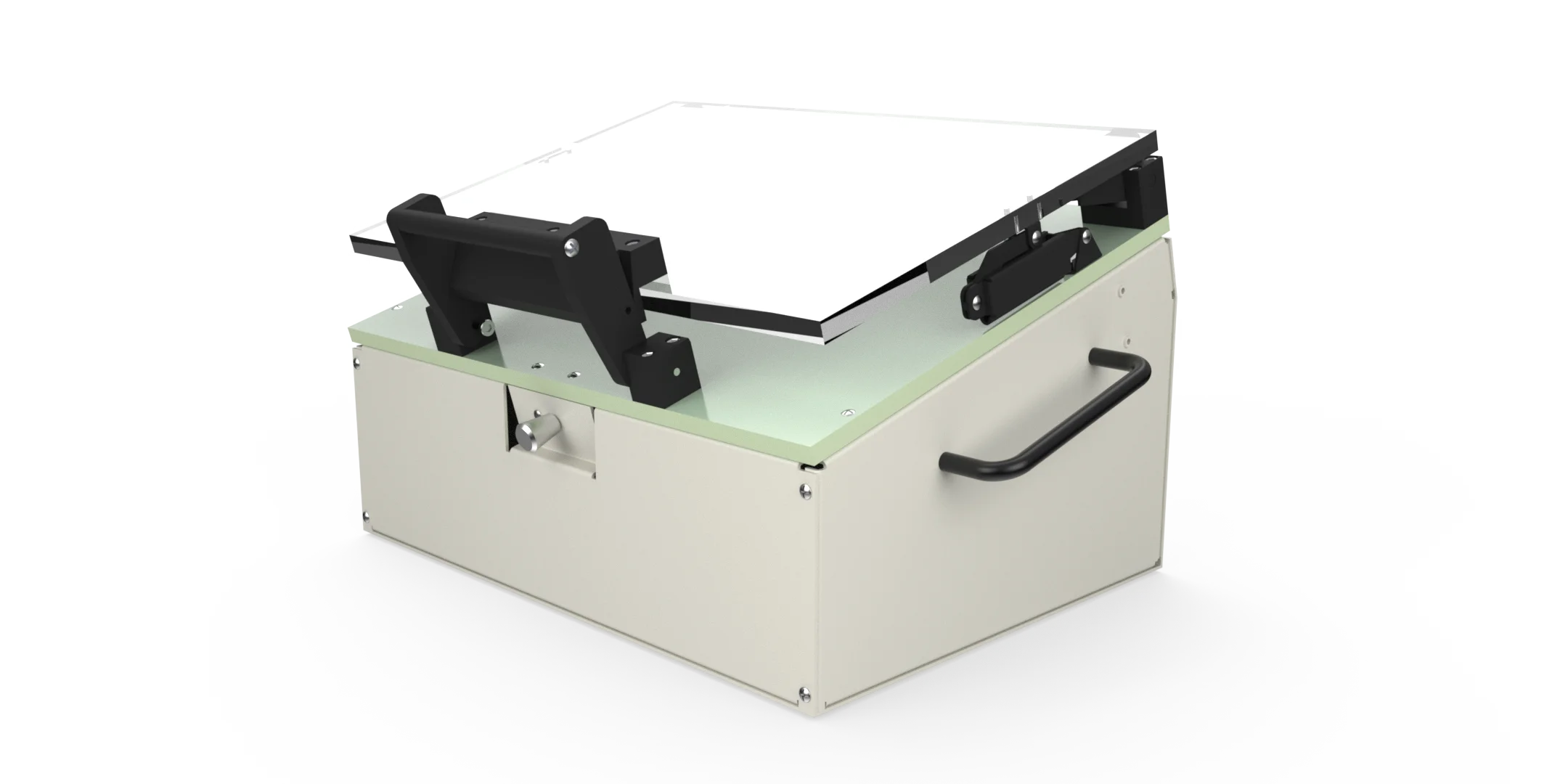

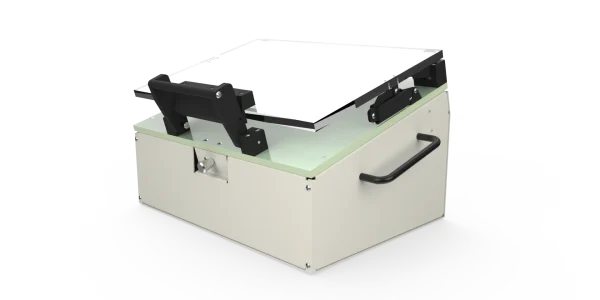

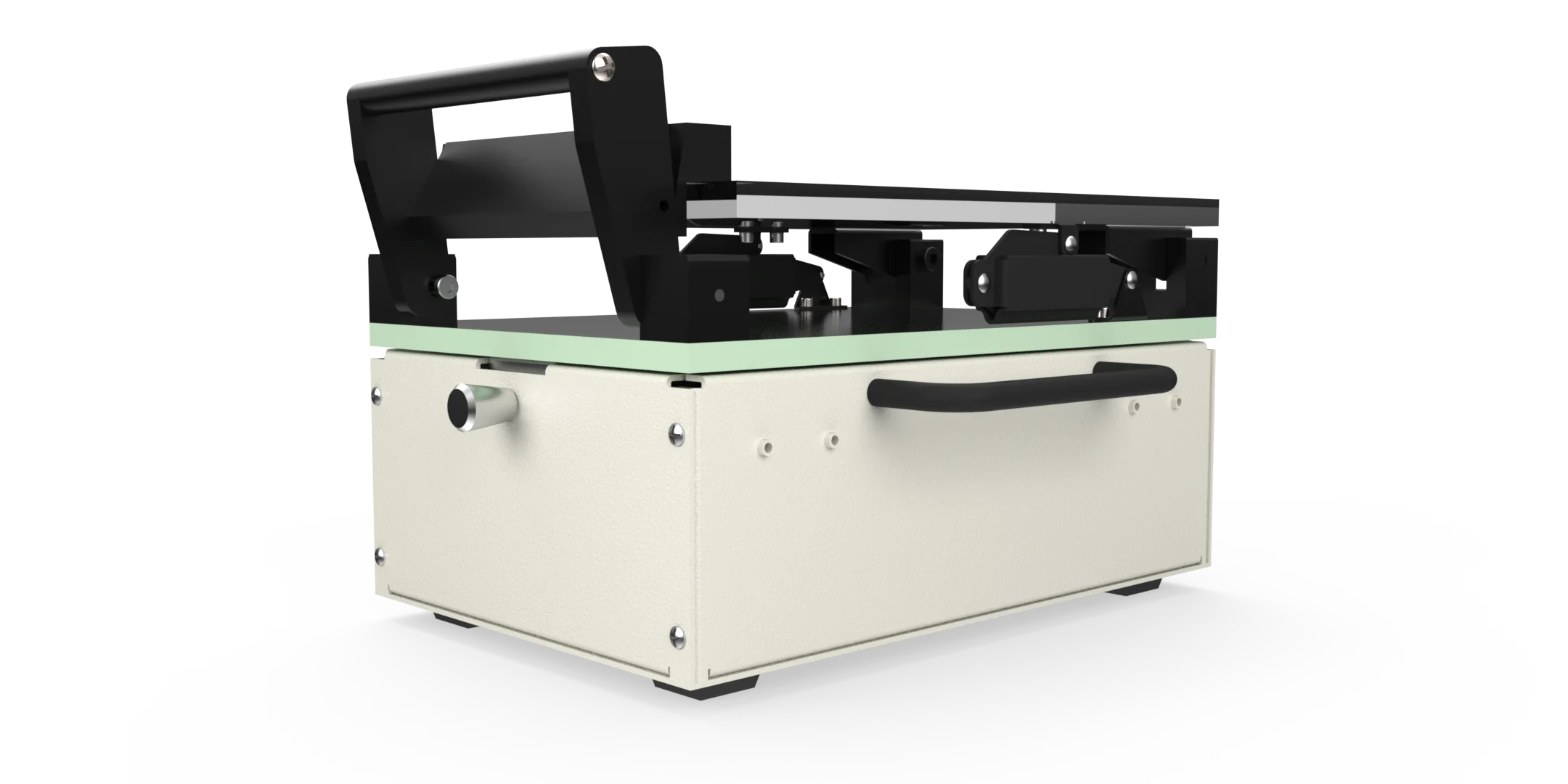

Bench Top Test Jig-MF Series

Purpose-Built for Simple, Low-Density PCB Testing
The MF Series Test Rig is expertly designed for testing simpler PCBs—particularly those with low-density, conventional circuitry. Ideal for benchtop environments, the MF Series combines functionality, accessibility, and safety in a compact form factor.

Key Features

• Compact Bench-Top Design
• Push-Down Plate Mechanism
• High-Precision Load and Displacement Sensors
• Pan with Hinge Access
• Data Acquisition & Reporting
• Robust Locking System
• Ergonomic Handle and Latch Assembly

Applications

• Mechanical endurance and fatigue testing
• Repair and calibration stations
• Module and sub-assembly alignment
• Testing PCBs such as power supplies and control boards
