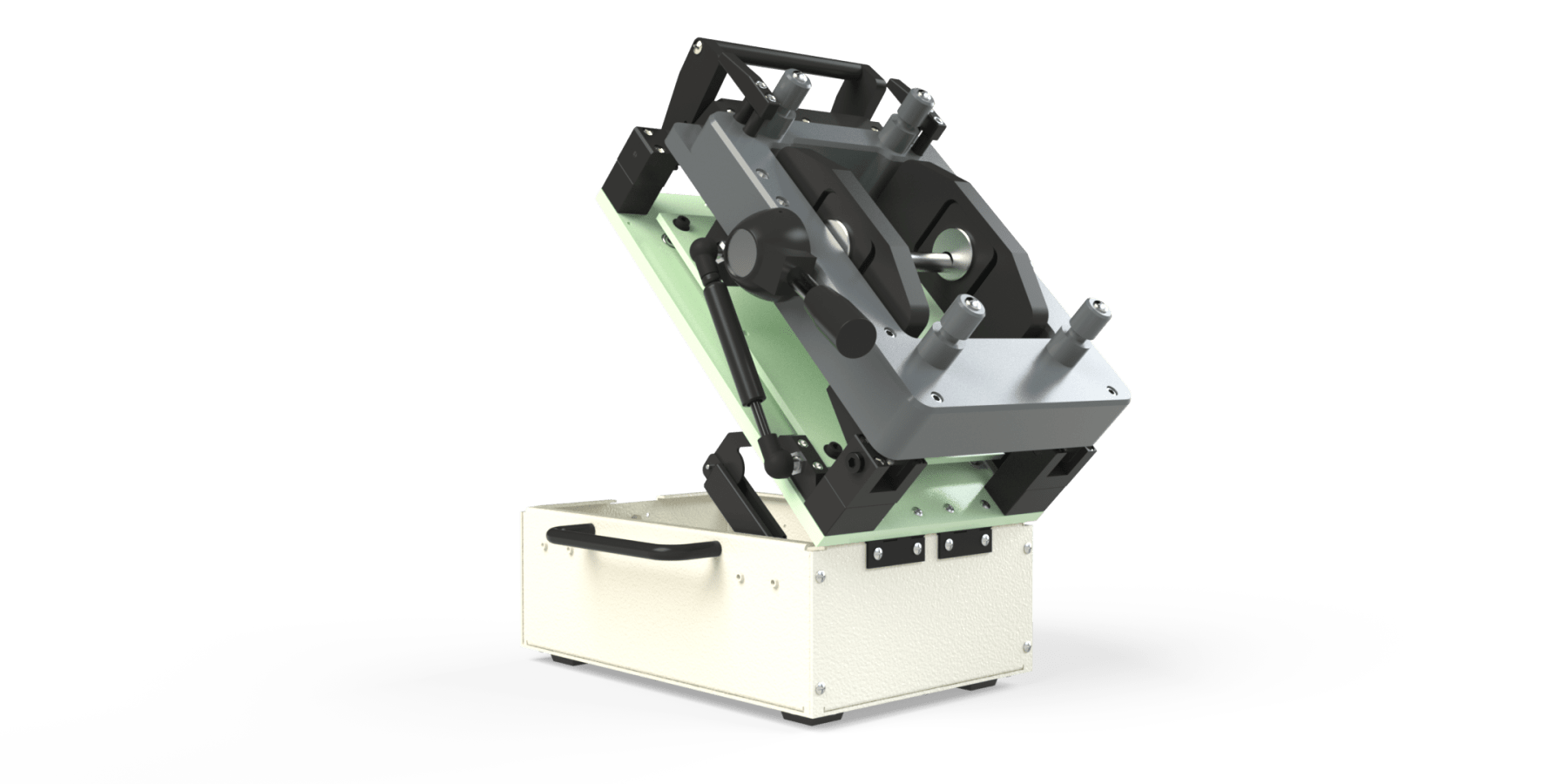

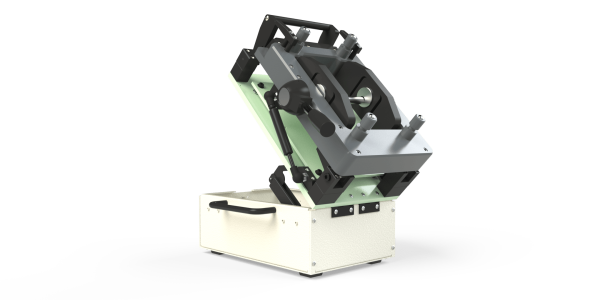

Bench Top Test Jig-CMF Series

Engineered for Precision Testing of Low to Medium Density PCBs

The CMF Series is specially designed for testing PCBs with conventional and surface mount circuitry, ideal for low to medium density boards. Featuring a fixed-position push finger system and cam-operated top plate, the CMF Series ensures stable, accurate, and repeatable contact with the unit under test (UUT).

Key Features

• Cam-Operated G10 Fiberglass Top Plate
• High node count support
• Customizable chassis
• Stripper Plate Compatibility
• Base Probe Plate Access
• Robust Build
• Ergonomic Handle System

Applications

• Repair and calibration stations
• Testing of PCBs such as power supplies and control modules
• Single-sided and limited double-sided PCB probing
• Probing of both conventional and SMT PCBs
