Bench Top Test Jig -CGF Series

Adjustable Push Finger Test Fixtures for Medium-Density PCB Testing

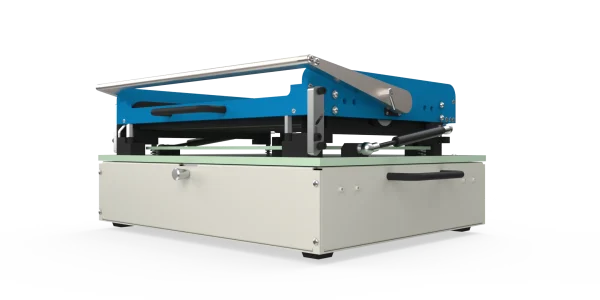

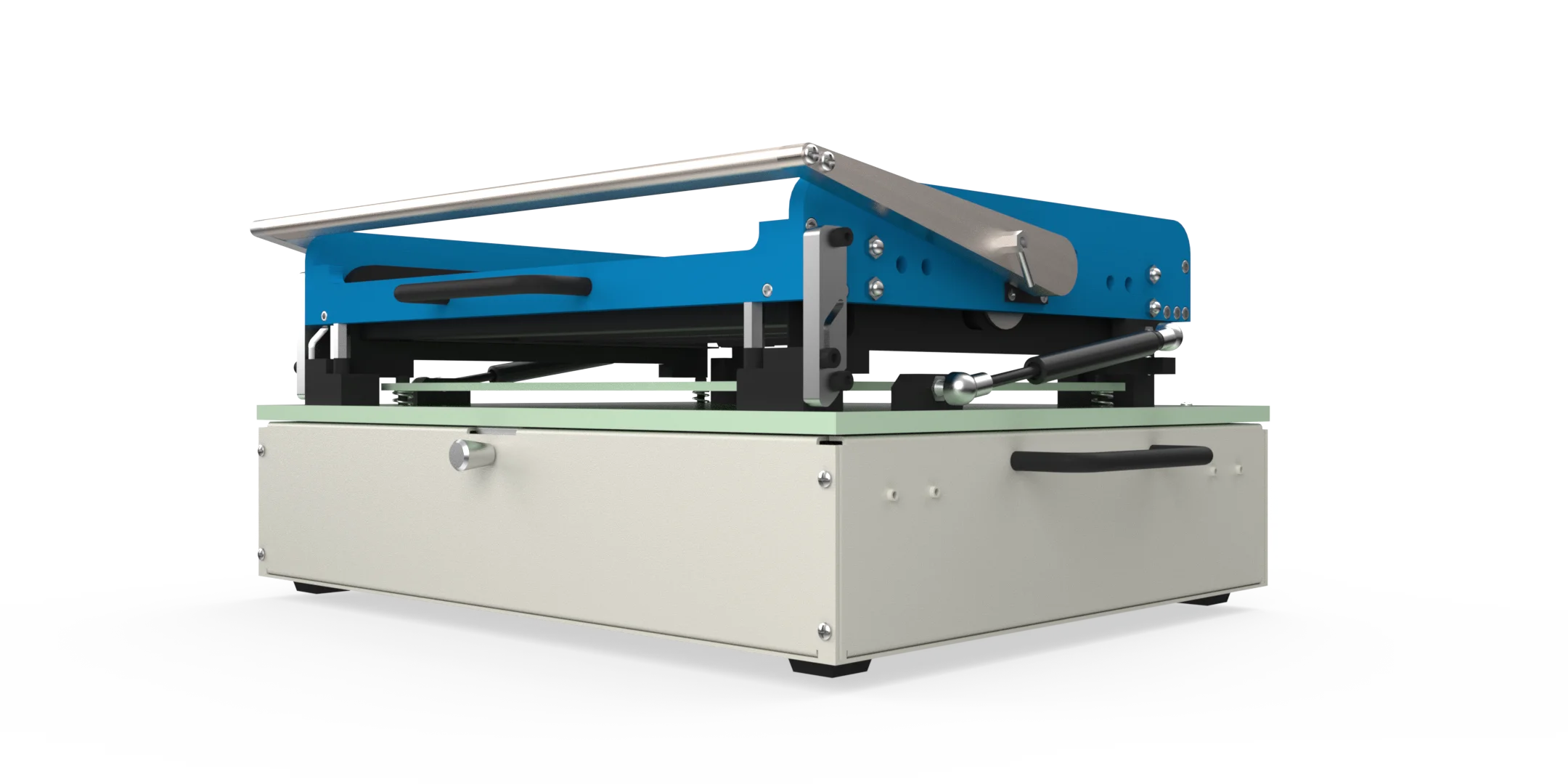

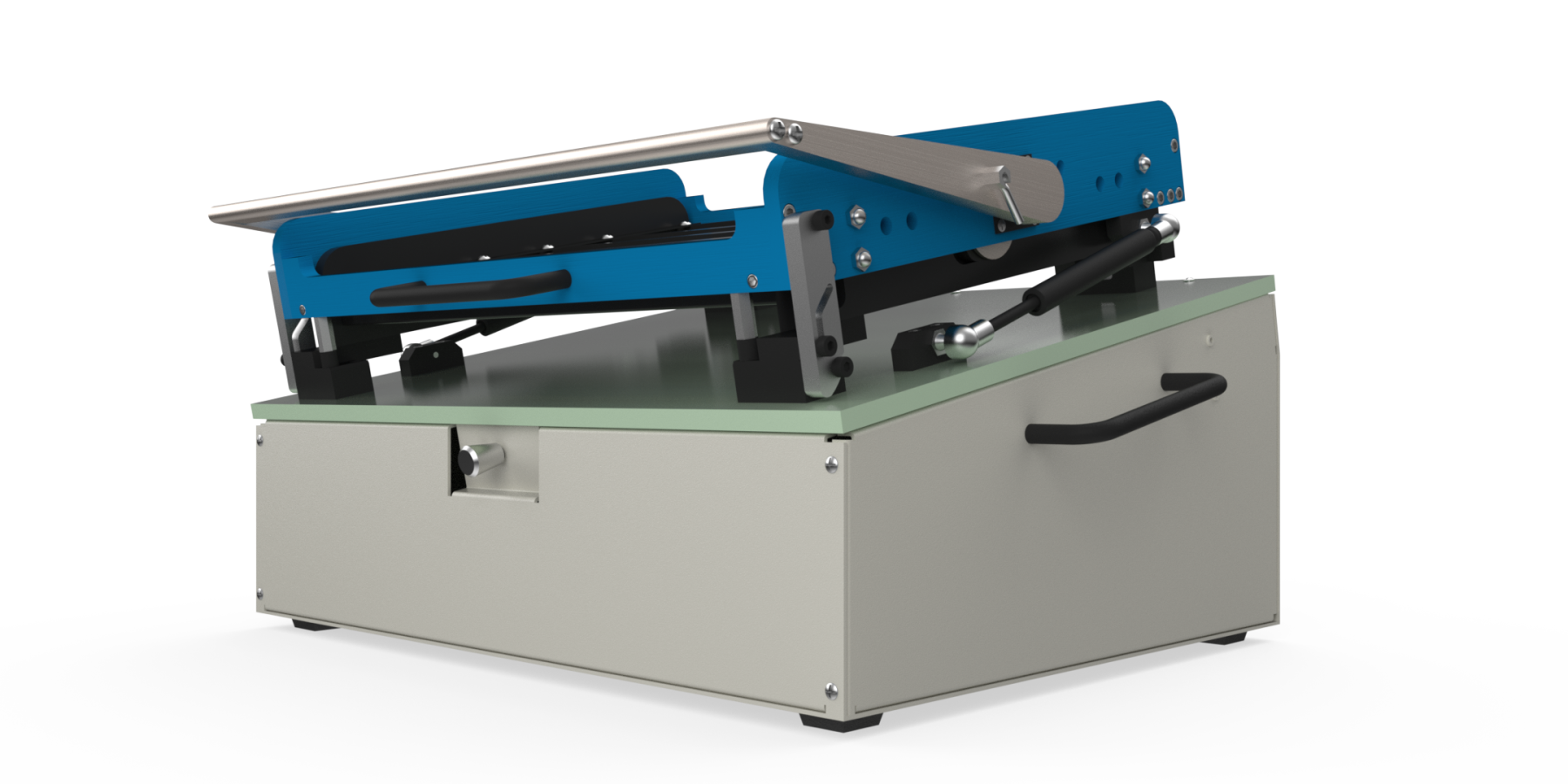

The CGF Series is a versatile test rig range engineered to test low to medium density PCBs that incorporate both conventional and surface mount circuitry. With adjustable press fingers and a cam-operated floating gate, it ensures uniform downward pressure for reliable probing and contact.

Key Features

• Cam-Operated Gate with Adjustable Press Fingers
• Floating Stripper Plate (Optional)
• Interlocked Handle & Latch Mechanism
• Anti-Slam Gas Springs
• Hinged Probe Plate Design
• Customizable Chassis

Applications

• Electronic repair and calibration stations
• Testing PCBs such as power supply, control, or interface boards
• Probing for both single-sided and double-sided PCBs
